robonix.service.navigation.vln

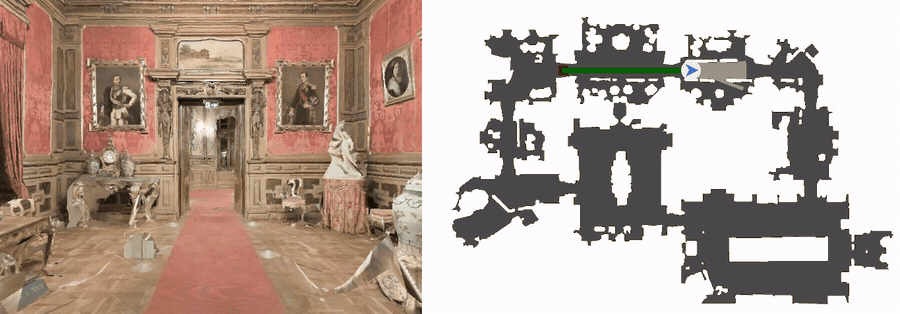

🎬 Demo Video

RoboNix Compute Optimization provides RoboNix with an external, measured compute optimization module for dual-system VLN. Slow semantic reasoning runs on a cloud GPU, while latency-sensitive action generation stays on the edge. The tool combines asynchronous execution, key-latent synchronization, active/pending context buffering, adaptive timeout handling, and per-step telemetry.

Project boundary. This repository is a publishable RoboNix Service package (robonix.service.navigation.vln): it ships package_manifest.yaml, its own capability contracts, and a provider that registers with Atlas and exposes four MCP tools. It does not modify RoboNix core — it consumes the standard camera and chassis contracts and adds no vendor SDK. The cloud S2 process is part of this same runtime rather than a separate package, and runs on a GPU host outside the robot deployment. The standalone HTTP API remains available for orchestrators that are not RoboNix deployments. See RoboNix Integration Boundary.

⚡ Results

Compute Skill optimizes the latency–accuracy trade-off rather than a single metric. On Orin+A100, SR remains on par with Edge Only (62.8 versus 62.9) while average step latency falls by 2.22×. Step Sync reaches a higher SR but blocks for 1644.5 ms per step. The complete Orin and Thor tables are included in Benchmark Results.

Start by goal

📚 Table of Contents

• Demo Video
• News
• Results
• What the Runtime Optimizes
• Architecture
• Running Images
• RoboNix Integration Boundary
• Validated Scope
• Supported Models and Platforms
• Quick Start
• Requirements
• Checkpoint Sources
• Step 1: Installation
• Step 2: Checkpoint Preparation
• Step 3: Dataset Preparation
• Step 4: Strict Preflight
• Step 5: Cloud and Edge Runtime
• Step 6: HTTP Skill API
• Benchmark Reproduction
• Benchmark Results
• Additional Dataset Readiness
• Service Ports and Environment Variables
• Repository Layout
• Roadmap
• Troubleshooting
• Validation and Contribution
• Contributors
• Citation
• License

📰 News

• 2026-07-27 — v0.3.0: Re-published as a service — robonix.service.navigation.vln, the instruction-following sibling of robonix.service.navigation (Nav2). Every contract id changed, so this is a breaking release; see CHANGELOG.md for the mapping and for why the compute runtime now loads on first call instead of at boot.
• 2026-07-25 — v0.2.0: Became a publishable RoboNix package, robonix.skill.compute_optimization: five capability contracts, an Atlas-registered provider with four MCP tools and lazy activation, the discrete-action to chassis/move mapping, and a hardware-free wiring harness. See CHANGELOG.md.
• 2026-07-19 — v0.1.0: Released the public runtime, InternVLA-N1 DualVLN adapter, HTTP Skill boundary, structured R2R-CE result package, licensed-data gate, strict model/environment preflight, and bilingual reproduction guide.

🧩 What the Runtime Optimizes

Naive asynchronous execution is fast but may repeatedly consume stale semantic context. Full step synchronization keeps context fresh but blocks the control loop. Compute Skill switches between these behaviors according to runtime state.

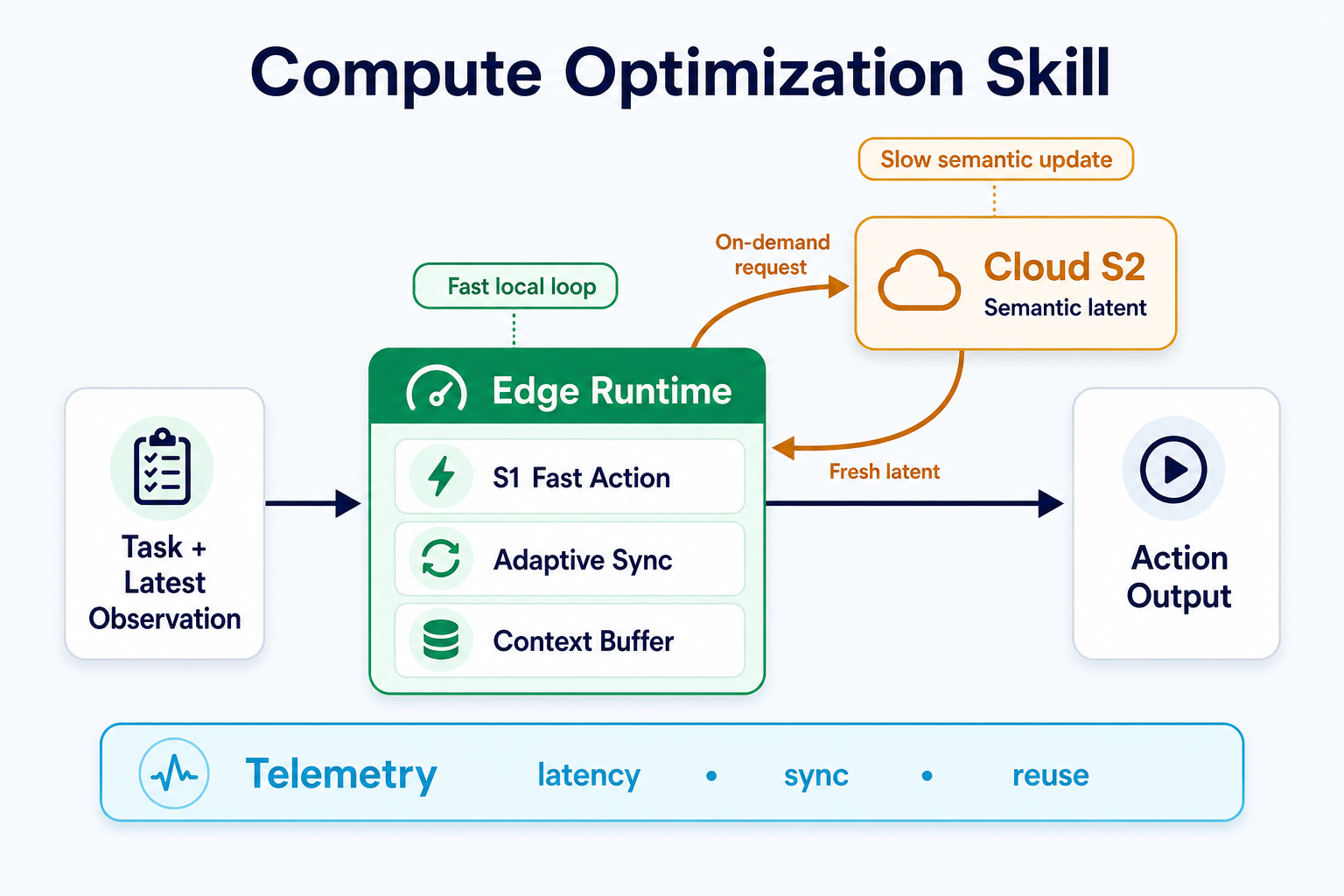

🧠 Architecture

1. Fast local loop: edge S1 consumes the latest observation and active context to produce the next action without waiting for cloud inference.
2. On-demand semantic refresh: adaptive sync requests cloud S2 only when a fresh latent is needed; responses enter the pending context before safe promotion.
3. Measured execution: telemetry records latency, synchronization, timeout, context reuse, payload size, and navigation metrics.

Model-specific fields such as trajectory latents, pixel goals, observation memory, and optional diffusion latents remain behind adapters.

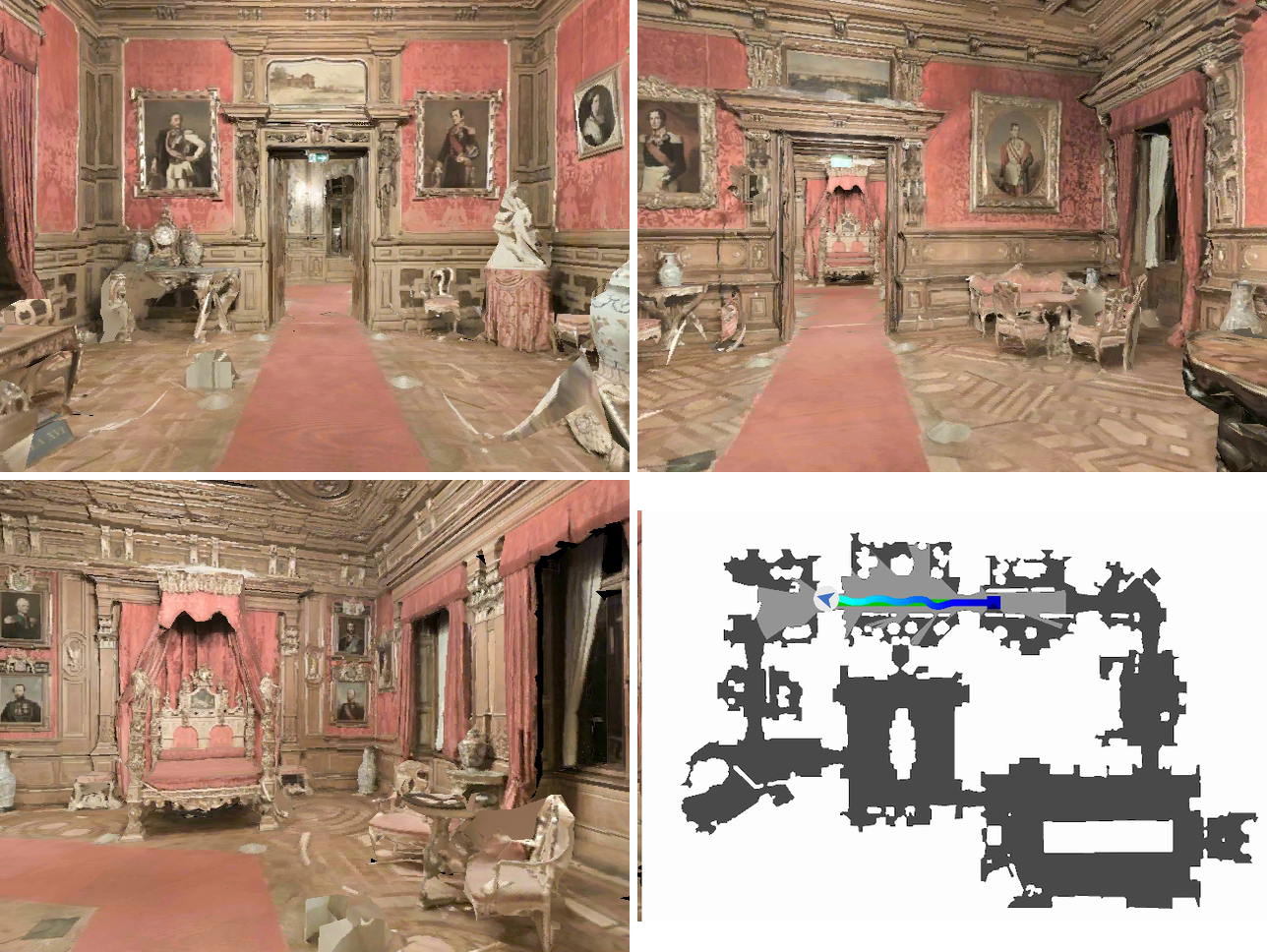

🖼️ Running Images

🔌 RoboNix Integration Boundary

This repository is a RoboNix Service package — robonix.service.navigation.vln. package_manifest.yaml at the repository root declares five capability contracts, so rbnx boot starts the provider and Atlas registers it. See CAPABILITY.md for the capability manual and config.spec for every config field.

It is the instruction-following sibling of robonix.service.navigation (Nav2): both own a long-running navigation runtime and expose the same navigate / status / cancel triple, but Nav2's goal is a metric PoseStamped while this one's is a sentence. A coordinate goes to Nav2; a route description comes here.

For natural-language invocation, deploy the thin robonix.skill.navigation.vln wrapper alongside it. Pilot tags only kind: skill providers with `[skill]`, and that tag is what tells the LLM to read a CAPABILITY.md before its first call — which matters here, because navigate is a start → poll → cancel sequence rather than one request. The wrapper carries no runtime of its own: the S1/S2 models, the cloud link and the chassis connection stay in this service, and one copy of them exists per deployment regardless of the entry point used.

The service consumes its observations and issues its actions through standard contracts, so it binds to any RoboNix robot that offers them — no vendor SDK enters this repository:

Two boundaries remain deliberate:

Two execution paths, one runtime

The compute runtime is consumed two different ways, and they are not the same shape. Keeping them distinct matters, because only one of them produces the benchmark numbers above.

The benchmark path is deliberately left as it is. Re-implementing its loop would mean the published SR/SPL came from our loop rather than InternNav's validated harness, so it stays untouched and this repository only supplies the compute runtime that plugs into it.

Using the service in a deployment

# robonix_manifest.yaml
service:
  # `name` must equal Service(id=...) in robonix_compute/rbnx/provider.py
  - name: navigation_vln
    url: https://github.com/i6bimua/service-navigation-vln-rbnx
    branch: main
    config:
      mode: internnav          # `mock` first: CPU-only, no checkpoints
      cloud_host: 10.0.0.2
      cloud_port: 8765
      step_size_m: 0.25        # must match the chassis primitive's increments
      turn_angle_deg: 15.0

robonix-compute-cloud --mode internnav --port 8765   # on the GPU host
rbnx build -f robonix_manifest.yaml                  # runs rbnx codegen --mcp
rbnx boot  -f robonix_manifest.yaml
rbnx caps -v                                         # navigation_vln ACTIVE
rbnx tools                                           # the four MCP tools appear

Why the model does not load at boot

rbnx boot sends both CMD_INIT and CMD_ACTIVATE to a service — lazy activation is a skill property, gated by rbnx and the executor on a robonix/skill namespace. Activation runs after every primitive is ACTIVE, so on_activate binds the camera, pose and chassis contracts and nothing more.

The checkpoints and the cloud link are acquired on the first navigate call. Doing that work at boot would make GPU memory and a reachable cloud host boot-time requirements of every deployment that merely lists this package, and an unreachable cloud S2 host would fail the whole boot rather than one call.

So ACTIVE here means bound to the robot, not ready to navigate; a checkpoint or cloud problem is reported by navigate as accepted=false with a diagnosis. status, cancel and telemetry answer without the runtime.

step_size_m and turn_angle_deg must equal the chassis primitive's own increments. chassis/move carries the requested magnitude, and a well-behaved primitive rejects a command far off its increment rather than travelling a different distance than the policy believes it did.

Verifying a deployment without hardware

tests/harness/ holds a synthetic body (mock_robot) and a local deployment manifest, so rbnx boot and a full navigate round-trip can be exercised with no simulator, no checkpoints and no GPU — only ROS 2 is required. It verifies wiring: contract resolution, image decode, the chassis/move round-trip, lifecycle transitions, status polling, cancel. Its frames are synthetic gradients, so it says nothing about navigation quality.

Without root, ROS 2 can be installed into a conda environment via RoboStack:

conda create -n rbnx-ros -c robostack-staging -c conda-forge python=3.11 \
    ros-humble-ros-base ros-humble-sensor-msgs ros-humble-nav-msgs ros-humble-geometry-msgs

🧪 Validated Scope

The following table distinguishes an executable path from data-only readiness and from a published result summary.

Status vocabulary: ✅ executed means the path was run; data check means licensed assets were parsed and validated but no model result is claimed.

Hosted CI covers the Python 3.9–3.11 test matrix, CPU quick start, CLI entry points, documentation links, SVG XML, deterministic result rendering, package builds, and the release audit. GPU/Habitat checks remain explicit local or self-hosted operations.

🧪 Supported Models and Platforms

OpenVLA, π0, π0.5, π0-FAST, StreamVLN, and other model families are not presented as supported. A new model requires S1/S2 adapters, serialization tests, a lightweight contract test, real launch instructions, and benchmark metadata.

🚀 Quick Start

This complete CPU path requires no model weights, simulator data, or GPU:

git clone https://github.com/i6bimua/service-navigation-vln-rbnx.git
cd service-navigation-vln-rbnx

conda create -n robonix-compute python=3.10 -y
conda activate robonix-compute
python3 -m pip install -U pip
python3 -m pip install -e ".[dev,websocket]"

bash scripts/run_mock_compute.sh --steps 5

Expected output:

{
  "actions": [0, 0, 1, 1, 1],
  "telemetry": "outputs/mock_compute/telemetry.json"
}

This verifies the public runtime contract. It does not measure navigation quality or reproduce the headline benchmark.

# Terminal 1
robonix-compute-cloud --mode mock --host 0.0.0.0 --port 8765

# Terminal 2
robonix-compute-edge \
  --mode mock \
  --cloud-host 127.0.0.1 \
  --cloud-port 8765 \
  --steps 5

⚙️ Requirements

The validated local simulator environment uses:

PyTorch and FlashAttention must match the CUDA and device software stack. Install the appropriate NVIDIA wheel on Orin/Thor instead of copying a server wheel.

📦 Checkpoint and Dataset Sources

This repository does not redistribute model weights, Matterport3D assets, R2R/RxR annotations, or populated raw evaluation logs. Obtain each external asset under its original license.

🧰 Step 1: Installation

1.1 Create the environment

git clone https://github.com/i6bimua/service-navigation-vln-rbnx.git
cd service-navigation-vln-rbnx
export ROBONIX_COMPUTE_ROOT="$(pwd)"

conda create -n robonix-compute python=3.10 -y
conda activate robonix-compute
python3 -m pip install -U pip setuptools wheel packaging

1.2 Install PyTorch and this package

Install a PyTorch build compatible with the machine. The following is only a CUDA-server example:

python3 -m pip install torch torchvision \
  --index-url https://download.pytorch.org/whl/cu128

python3 -m pip install -e ".[dev,websocket,download]"

1.3 Install InternNav and Habitat

git clone https://github.com/InternRobotics/InternNav.git "$HOME/InternNav"
export INTERNNAV_ROOT="$HOME/InternNav"

python3 -m pip install -e "$INTERNNAV_ROOT[habitat,internvla_n1]"
export PYTHONPATH="$INTERNNAV_ROOT:$INTERNNAV_ROOT/third_party/diffusion-policy:${PYTHONPATH:-}"

Install Habitat-Lab and Habitat-Sim with versions compatible with InternNav. The validated combination is 0.2.4:

conda install -y habitat-sim=0.2.4 headless withbullet \
  -c conda-forge -c aihabitat
python3 -m pip install habitat-lab==0.2.4 habitat-baselines==0.2.4

Verify imports before downloading large assets:

python3 -c "import habitat, habitat_sim, internnav; print('imports OK', habitat.__version__)"

If the exact Habitat packages are unavailable for the target Python/CUDA combination, create the environment using the matching InternNav/Habitat release instead of mixing versions.

📥 Step 2: Checkpoint Preparation

2.1 Download the full model and depth checkpoint

cd "$ROBONIX_COMPUTE_ROOT"
robonix-compute-download --output checkpoints

Expected layout:

checkpoints/
├── InternVLA-N1/
│   ├── config.json
│   ├── model.safetensors.index.json
│   └── model-00001-of-00004.safetensors ... model-00004-of-00004.safetensors
└── depth_anything_v2_metric_hypersim_vits.pth

2.2 Export the S1-only edge checkpoint

robonix-compute-export-s1 \
  --source checkpoints/InternVLA-N1 \
  --output checkpoints/InternVLA-N1-S1

Expected S1 layout:

checkpoints/InternVLA-N1-S1/
├── config.json
├── internvla_n1_s1_only.json
└── model.safetensors

2.3 Set absolute paths

export ROBONIX_COMPUTE_MODEL_DIR="$ROBONIX_COMPUTE_ROOT/checkpoints/InternVLA-N1"
export ROBONIX_COMPUTE_S1_MODEL_DIR="$ROBONIX_COMPUTE_ROOT/checkpoints/InternVLA-N1-S1"
export ROBONIX_COMPUTE_DEPTH_CKPT="$ROBONIX_COMPUTE_ROOT/checkpoints/depth_anything_v2_metric_hypersim_vits.pth"

Do not point ROBONIX_COMPUTE_S1_MODEL_DIR at the full checkpoint merely to make a path check pass. The strict preflight requires an actual model.safetensors S1 export.

🗃️ Step 3: Dataset Preparation

3.1 Obtain licensed assets

1. Request Matterport3D access from the official Matterport3D page and accept its terms.
2. Obtain R2R-CE / VLN-CE annotations from the official VLN-CE source.
3. Convert or arrange the files into the layout below.
4. Add RxR and derived splits only when using the optional extended data profile.

3.2 Required core layout

${ROBONIX_COMPUTE_DATA_ROOT}/
├── scene_data/
│   └── mp3d_ce/
│       └── mp3d/
│           └── <scan-id>/
│               ├── <scan-id>.glb
│               └── <scan-id>.navmesh
└── vln_ce/
    └── raw_data/
        └── r2r/
            └── val_unseen/
                └── val_unseen.json.gz

Set the root:

export ROBONIX_COMPUTE_DATA_ROOT=/absolute/path/to/vln_benchmark
export INTERNNAV_HABITAT_DATA_ROOT="$ROBONIX_COMPUTE_DATA_ROOT"

3.3 Validate the core R2R-CE data

robonix-compute-data-check \
  --data-root "$ROBONIX_COMPUTE_DATA_ROOT" \
  --profile core \
  --strict

Expected checks:

OK  R2R-CE val_unseen  episodes=1839
OK  MP3D-CE scenes     11 referenced scenes have GLB and navmesh assets
OK: true

The checker validates annotation parsing, exact episode count, referenced scene IDs, GLB files, and navmeshes. It does not validate model inference.

3.4 Optional extended layout

${ROBONIX_COMPUTE_DATA_ROOT}/vln_ce/raw_data/
├── r2r/
│   ├── val_unseen_short/val_unseen_short.json.gz
│   ├── val_unseen_medium/val_unseen_medium.json.gz
│   └── val_unseen_long/val_unseen_long.json.gz
├── rxr/
│   └── val_unseen/
│       ├── val_unseen_guide_en_compat.json.gz
│       └── val_unseen_guide_gt.json.gz
└── reverie_nav_proxy/
    └── val_unseen/val_unseen.json.gz

robonix-compute-data-check \
  --data-root "$ROBONIX_COMPUTE_DATA_ROOT" \
  --profile extended \
  --strict

The extended check expects:

Passing the extended data check does not imply that Compute Skill has a full-split result on those optional datasets.

🔍 Step 4: Strict Preflight

Run the preflight in the same environment that will launch Habitat:

robonix-compute-preflight \
  --internnav-root "$INTERNNAV_ROOT" \
  --data-root "$ROBONIX_COMPUTE_DATA_ROOT" \
  --checkpoint-path "$ROBONIX_COMPUTE_MODEL_DIR" \
  --s1-model-path "$ROBONIX_COMPUTE_S1_MODEL_DIR" \
  --depth-checkpoint-path "$ROBONIX_COMPUTE_DEPTH_CKPT" \
  --cloud-gpu-id 1 \
  --edge-gpu-id 0 \
  --cloud-port 18765 \
  --require-gpu \
  --strict

The command fails on:

• missing or malformed R2R-CE annotations;
• missing referenced MP3D GLB/navmesh assets;
• incomplete full-model shard sets;
• missing S1 model.safetensors;
• missing depth checkpoint;
• unavailable InternNav/Habitat imports;
• missing InternNav evaluation scripts/configs;
• unavailable port or invalid GPU IDs.

Preflight validates readiness, not available GPU memory and not navigation quality. Check GPU occupancy separately before loading the model:

nvidia-smi

☁️ Step 5: Cloud and Edge Runtime

5.1 Start cloud S2

robonix-compute-cloud \
  --mode internnav \
  --host 0.0.0.0 \
  --port 8765 \
  --model-dir "$ROBONIX_COMPUTE_MODEL_DIR" \
  --device cuda:0

5.2 Start edge S1

Copy checkpoints/InternVLA-N1-S1 to the edge host, install the same package, and run:

robonix-compute-edge \
  --mode internnav \
  --cloud-host <cloud-ip> \
  --cloud-port 8765 \
  --model-dir "$ROBONIX_COMPUTE_MODEL_DIR" \
  --s1-model-dir "$ROBONIX_COMPUTE_S1_MODEL_DIR" \
  --device cuda:0 \
  --stdin-jsonl

The edge process reads one JSON observation per line:

{
  "step_id": 0,
  "instruction": "go to the kitchen",
  "observation": {
    "rgb": [[[0, 0, 0]]],
    "depth": [[0.0]],
    "pose": [0.0, 0.0, 0.0]
  }
}

It returns the action and per-step telemetry as JSON. Restrict the WebSocket port to trusted hosts. The example transport does not provide production authentication, encryption, or robot-side action safety.

🌐 Step 6: HTTP Skill API

Mock-backed HTTP service

robonix-compute-skill \
  --host 0.0.0.0 \
  --port 8090 \
  --config-json examples/robonix_compute_config.json

InternNav-backed HTTP service

robonix-compute-skill \
  --host 0.0.0.0 \
  --port 8090 \
  --config-json examples/robonix_compute_internnav_config.json

Health and step request

curl http://127.0.0.1:8090/health

curl -X POST http://127.0.0.1:8090/step \
  -H 'Content-Type: application/json' \
  -d '{"observation":{"rgb":[1.0,0.0],"depth":[0.0]}}'

This HTTP process is the delivered Skill boundary. RoboNix-native registration and orchestration remain external.

📊 Benchmark Reproduction

Benchmark definition

1. Local one-episode connectivity run

Use separate local GPUs for cloud S2 and edge S1:

export ROBONIX_COMPUTE_HABITAT_EPISODES=1
export ROBONIX_COMPUTE_OUTPUT_DIR=outputs/habitat_eval_r2r_ep1
export ROBONIX_COMPUTE_CLOUD_GPU_ID=1
export ROBONIX_COMPUTE_EDGE_GPU_ID=0
export ROBONIX_COMPUTE_CLOUD_PORT=18765

bash scripts/run_habitat_eval.sh

This path has been verified to complete one R2R-CE episode and emit navigation and runtime artifacts. A single episode is a connectivity check, not benchmark evidence.

2. Five-episode subset

export ROBONIX_COMPUTE_HABITAT_EPISODES=1,2,3,4,5
export ROBONIX_COMPUTE_OUTPUT_DIR=outputs/habitat_eval_r2r_5eps

bash scripts/run_habitat_eval.sh

3. Complete local split

export ROBONIX_COMPUTE_HABITAT_EPISODES=all
export ROBONIX_COMPUTE_OUTPUT_DIR=outputs/habitat_eval_r2r_full

bash scripts/run_habitat_eval.sh

all is expanded from the prepared val_unseen.json.gz; the validated split contains episode IDs 1–1839. This local two-GPU path does not reproduce the Orin/Thor hardware condition by itself. Compare results with the committed headline table only when the model revision, hardware, power mode, network settings, and latency definition match.

4. Synthetic network delay

export ROBONIX_COMPUTE_RTT_DELAY_MS=200
bash scripts/run_habitat_eval.sh

The injected delay is a controlled synthetic input. It is not evidence of a real Wi-Fi, 5G, or cellular trace.

5. Output artifacts

outputs/habitat_eval_r2r_5eps/
├── cloud_eval_stdout.log
├── edge_stdout.log
├── cloud_gpu_mem_trace.csv
├── edge_cloud_s2_summary.json
├── edge_cloud_s2_summary_table.csv
├── edge_cloud_s2_control_steps.csv
├── edge_cloud_s2_episode_summary.csv
└── eval/
    ├── progress.json
    ├── result.json
    └── analysis_logs/

Summarize an existing run:

python3 scripts/summarize_habitat_eval.py \
  outputs/habitat_eval_r2r_5eps \
  --format table

Regenerate the README result figure from structured CSV:

python3 benchmarks/r2r_ce/render_results.py

🏆 Benchmark Results

Orin + A100

Thor + A100

Orin+A100 ablation

Runtime bookkeeping overhead

Cloud Only is a compute upper bound and does not represent an edge-owned local control loop. Step Sync is a freshness upper bound with substantial blocking. Compute Skill targets the accuracy–latency trade-off.

Reporting boundaries

• The committed CSV files are compact project benchmark summaries.
• Raw 1,839-episode logs are not distributed in this repository.
• A smoke or subset run must not be reported as the headline benchmark.
• A local A100+A100 run must not be labeled as Orin or Thor.
• Synthetic delay must not be labeled as a measured network trace.
• < 8 KB describes runtime control state, not total system overhead.
• New results must report model revision, split, episode count, hardware, power mode, latency definition, network settings, and raw summary artifacts.

🧭 Additional Dataset Readiness

The optional extended profile is useful for future generalization studies, but the readiness levels are intentionally narrow:

The REVERIE proxy does not include object grounding, RGS, or RGSPL and must not be called full REVERIE or REVERIE-CE. Original REVERIE requires a separate MatterSim/object-grounding stack and is deliberately excluded here.

🔧 Service Ports and Environment Variables

Ports

Main environment variables

🗂️ Repository Layout

service-navigation-vln-rbnx/
├── package_manifest.yaml          # RoboNix package surface read by rbnx and the catalog
├── CAPABILITY.md                  # Capability manual for Pilot's LLM
├── config.spec                    # Every config field, documented
├── capabilities/
│   ├── *.v1.toml                  # The five contracts this package provides
│   └── lib/navigation_vln/srv/    # ROS 2 IDL for the four MCP tools
├── .github/workflows/ci.yml       # Python matrix, CLI, docs, audit and build
├── robonix_compute/
│   ├── benchmark_data.py          # Licensed dataset integrity checks
│   ├── cloud/                     # S2 runner and WebSocket service
│   ├── edge/                      # S1 runtime, switcher and timeout handling
│   ├── common/                    # Messages, buffer, serialization and telemetry
│   ├── eval/                      # Habitat adapter and strategy definitions
│   ├── rbnx/                      # RoboNix Service provider (Atlas-registered)
│   ├── robonix/                   # External HTTP Skill boundary
│   └── cli/                       # robonix-compute-* commands
├── benchmarks/r2r_ce/
│   ├── results/                   # Main, ablation and overhead CSV files
│   ├── metadata.yaml              # Benchmark conditions and reporting boundary
│   └── render_results.py          # Deterministic result-figure generation
├── configs/                       # Defaults, deployment presets and support matrix
├── docs/assets/                   # README figures
├── examples/                      # Mock and InternNav JSON configurations
├── scripts/                       # build/start/stop entry points, plus release checks
└── tests/
    ├── unit/ · integration/       # Coverage for the runtime and the service boundary
    └── harness/                   # Synthetic body + deployment manifests (not published)

robonix_compute/ is the canonical import-compatible implementation. Its two outward boundaries are rbnx/ (the RoboNix Service provider) and robonix/ (the standalone HTTP API); both wrap the same EdgeRuntime. The remaining top-level directories expose the benchmark, configuration and validation workflows.

🗺️ Roadmap

• [x] Publish an independently runnable source-only package and CPU mock path.
• [x] Validate the InternVLA-N1 DualVLN cloud-S2/edge-S1 runtime.
• [x] Add strict R2R-CE data, checkpoint, environment, and result-provenance checks.
• [ ] Publish sanitized full-split raw evaluation artifacts.
• [ ] Provide a versioned RoboNix service adapter beyond the external HTTP boundary.
• [ ] Add authenticated and encrypted production transport examples.
• [ ] Validate additional model families and datasets before listing them as supported.

🩺 Troubleshooting

python: command not found

All repository commands use python3. For the Habitat wrapper:

export PYTHON_BIN=python3

module not importable: habitat or internnav

Activate the same environment used to install InternNav and Habitat, then:

export PYTHONPATH="$INTERNNAV_ROOT:$INTERNNAV_ROOT/third_party/diffusion-policy:${PYTHONPATH:-}"
python3 -c "import habitat, habitat_sim, internnav; print('imports OK')"

Incomplete full checkpoint

The strict preflight reads model.safetensors.index.json and verifies every referenced shard. Re-run:

robonix-compute-download --output checkpoints

Missing S1 weights

An S1 directory containing only config.json is not valid:

robonix-compute-export-s1 \
  --source "$ROBONIX_COMPUTE_MODEL_DIR" \
  --output "$ROBONIX_COMPUTE_S1_MODEL_DIR"

Dataset check fails

Confirm the absolute root and run the core checker. The repository cannot download licensed Matterport3D assets:

robonix-compute-data-check \
  --data-root "$ROBONIX_COMPUTE_DATA_ROOT" \
  --profile core \
  --strict

Port is occupied

export ROBONIX_COMPUTE_CLOUD_PORT=18766

Use the same port for the cloud and edge processes.

CUDA out of memory

Check nvidia-smi before model loading. The strict preflight validates GPU IDs, not free memory. Stop only processes you own, or select unused GPUs.

Timeout under injected delay

Increase the timeout budget only after recording the delay configuration. Keep synthetic-delay results separate from measured-network results.

✅ Validation and Contribution

python3 -m pytest -q
python3 scripts/check_docs.py
python3 scripts/release_audit.py
python3 benchmarks/r2r_ce/render_results.py
python3 -m build

User-visible changes require tests and matching English/Chinese README updates. A new model requires adapters and benchmark evidence. A new dataset entry must state whether it is data-validated, runner-integrated, smoke-tested, or full-split benchmarked.

Security issues should be reported privately according to SECURITY.md. Contribution rules are in CONTRIBUTING.md; release history is in CHANGELOG.md.

🤝 Contributors

• Zihao Zheng (@zhengzihaoPKU) — Leader.
• Hangyu Cao (@i6bimua) — Maintainer.

📝 Citation

If this Tool supports your work, please consider giving the repository a star and citing it:

@software{robonix_compute_optimization_2026,
  author  = {Cao, Hangyu and Zheng, Zihao},
  title   = {RoboNix Compute Optimization},
  year    = {2026},
  version = {0.3.0},
  url     = {https://github.com/i6bimua/service-navigation-vln-rbnx}
}

InternNav, InternVLA-N1 DualVLN, Habitat, VLN-CE, R2R/RxR, and Matterport3D retain their own citation and attribution requirements.

📄 License

This project is licensed under the Mulan Permissive Software License, Version 2. Third-party models, simulators, datasets, and libraries retain their original licenses and terms; see THIRD_PARTY_LICENSES.md.
